CISPR 16-1-4 Assessment: Set-up Table Influences (TI) Testing
Don’t settle for testing that adds complexity and risk to your schedule. Shielding Integrity Services (SIS) delivers expert, fully accredited, independent CISPR 16-1-4 Assessment based on decades of practical, hands-on experience—not just theory. We use proven, reliable test equipment and automated measurement systems that meet applicable industry standards and maximize testing efficiency, ensuring fast turnaround of accurate data. Whether validating a compact 3-meter setup or a specialized 10-meter facility anywhere in the world, SIS delivers the precise, compliant results you need to move your projects forward with confidence.
Test Necessity & Standards
The Set-up Table Influences (TI) test is a critical evaluation designed to determine the subtle influence a set-up table can have on radiated emissions measurements by introducing reflections, scattering, and other electromagnetic interactions within the test environment. This test helps verify that the table itself does not contribute unacceptable errors to your test results, which is vital for maintaining compliance integrity.
Accreditation Standard
- We perform this evaluation as described in CISPR 16-1-4 (2010), Clause 5.5.2.

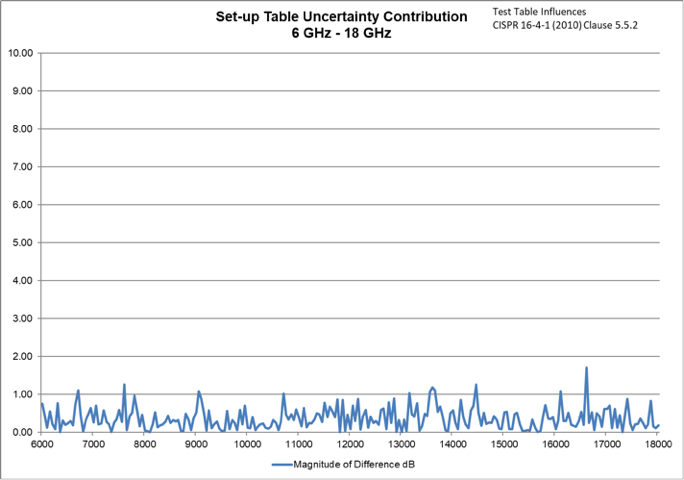

Example Table Influence Chart

Measurement Methodology: Dual-Measurement Integrity
Our precise methodology isolates the table’s influence, providing a direct measurement of its impact on your testing environment.
Procedure: Two-Step Isolation
- We conduct two transmission measurements: one with the set-up table present, and the second with the set-up table absent.
- During both measurements, the transmit antenna is kept in the same specific arrangement.
- The difference between the two measurement results provides a highly accurate estimate of the influence caused solely by the table.

Detailed Frequency Ranges & Measured Results
This specialized test covers a wide range necessary for comprehensive EMC validation and provides actionable, clear data for your records.
Test Parameters
- Frequency Range: The test is performed for the 200 MHz to 18 GHz frequency range.
- Report Output: Following the test, we issue a report detailing the table value in dB for the following ranges:
- 200 MHz to 1 GHz
- 1 GHz to 3 GHz
- 3 GHz to 18 GHz
Estimating Uncertainty Contribution
One of the most important aspects of this service is its contribution to validating the overall test environment’s reliability.
- We calculate the table’s related uncertainty contribution to your field strength measurements, ensuring your compliance reporting is complete and accurate.
